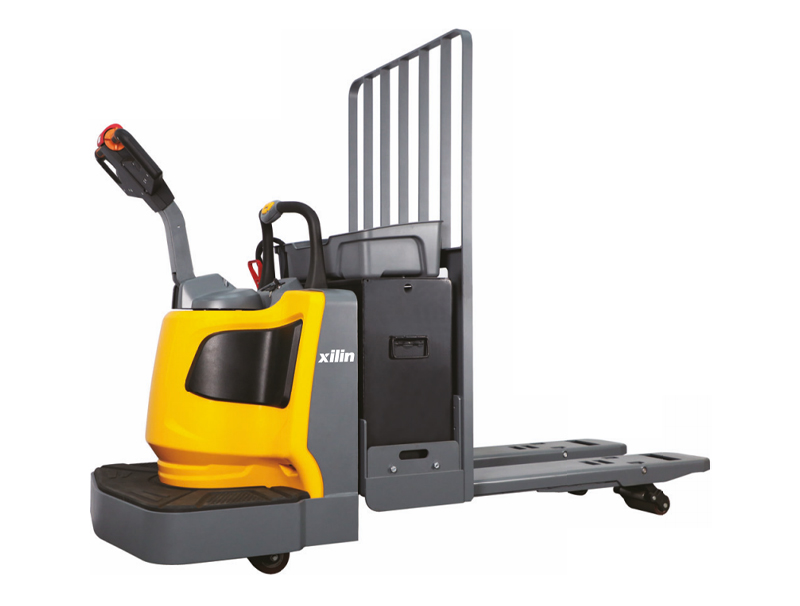

Electric End Control Pallet Truck CBD30T/CBD40T Suppliers

home / product / Electric Pallet Truck / Electric End Control Pallet Truck
  • Electric End Control Pallet Truck CBD30T/CBD40T
Model

CBD30T/CBD40T

Electric End Control Pallet Truck

Heavy Duty type CBD-T series Rider Pallet Trucks with capacity (3000-4000KG / 6600-8800LBS), widely used in supermarket & big warehouse.
  • Electric End Control Pallet Truck CBD30T/CBD40T

Advantage:

SAFETY AND EFFICIENCY
● Smooth running, excellent climbing ability, with durable and reliable truck body and wheels.
● Side-standing operation, safety handle bar provides safety operation.
● Multi-function display: battery status, hour meter, fault code, slow running state, etc.
● Switch control equipped armrest for lifting/lowering, slow running and the horn functions.
● High-capacity Battery and big power Drive Motor provides strong power and ensures long working time.
● Adjustable-speed AC motor provides long life, free maintenance and excellent performance for the ramp up & down.
● Emergency reverse direction switch equipped handle, provides safer operation.
● Build-in pressure relief valve protects the truck from overloads.
● Emergency power disconnector.
● Turtle speed switch.
STRUCTURAL:
● Vertical drive motor system easy for maintenance.
● Equipped with a load-backrest (different height is available).
● The lifting height reaches 135mm, which provides better passing ability.
● Combined balance wheels increase steadiness, preventing the truck from being rocked from side to side.
● The balance wheel is detachable, it is convenient to maintain.
● The side door of battery is conveniently to be replaced and service.
EASY MAINTENANCE:
● Low battery protection setting prolongs the battery use time.
● CANbus technology reduces wiring complexity, making the line clear, orderly and easy to repair. And also increases the truck's reliability.
● Hall-effect throttle control eliminates wear components and prolongs its use time.
● With reasonable design, the cover is reliable and easy to dismantle, which makes the maintenance of the electrical parts very easy.

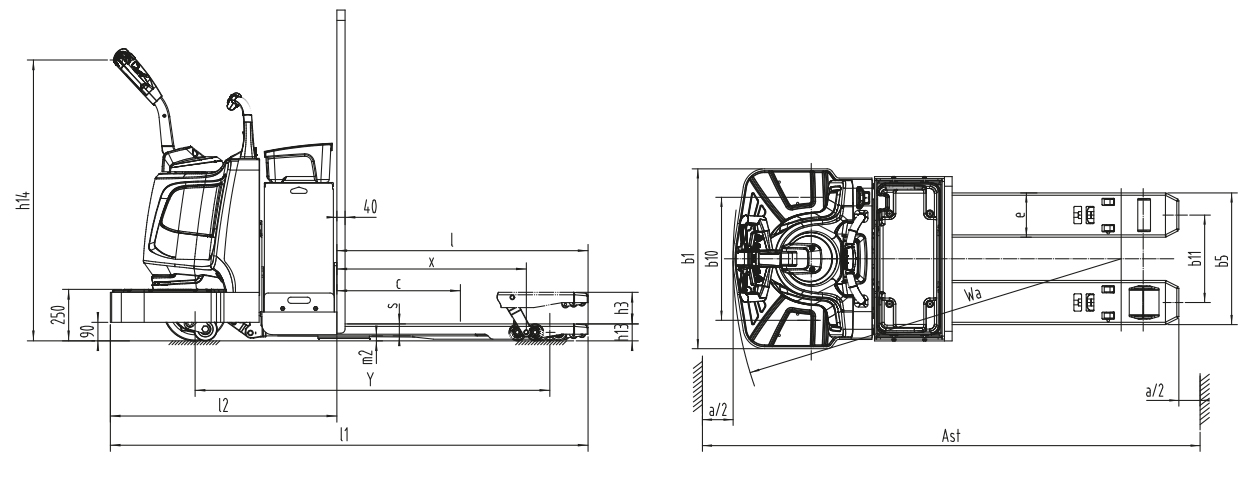

DIMENSION Drawing:

Model



CBD30T

CBD40T

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

2700(6000LB)

3600(8000LB)

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

1034/920

1034/920

Wheelbase

y(mm)

1600/1485

1722/1608

Service weight

kg

910

1065

Axle loading, laden front/rear

kg

1248/2362

1486/3179

Axle loading, unladen front/rear

kg

666/244

770/295

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Polyurethane (PU)

Tyre size, front

mm

Φ310x100

Φ310x100

Tyre size, rear

mm

Φ82x165/Φ82x137

Φ82x165/Φ82x137

Additional wheels (dimensions)

mm

Φ114x60

Φ114x60

Wheels, number front/rear (x = driven wheels)



1X+2/2(4)

1X+2/2(4)

Tread, front

b10(mm)

640

640

Tread, rear

b11(mm)

455

455

Max. lift height

h3(mm)

150

150

Height drawbar in driving position min./max.

h14(mm)

940/1365

940/1365

Height lowered

h13(mm)

83

83

Overall length

l1(mm)

2197

2320

Length to face of forts

l2(mm)

977

1100

Overall width

b1/b2(mm)

936

936

Fork dimensions DIN ISO 2331

s/e/l(mm)

58/230/1220

58/230/1220

Fork spread

b5(mm)

685

685

Ground clearance, centre of wheelbase

m2(mm)

26

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2702

2825

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2587

2710

Turning radius

Wa(mm)

1897

2020

Travel speed, laden/unladen

km/h

11.5/13

11.5/13

Lift speed, laden/unladen

m/s

0.03/0.04

0.03/0.04

Lowering speed, laden/unladen

m/s

0.04/0.05

0.04/0.05

Max. gradeability. laden/unladen

%

8/20

6/20

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

4

4

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/300

24/560

Battery weight

kg

270

425

Drive control



AC control

AC control

Steering

Manual

Manual

Sound pressure level at the driver's seat

dB(A)

70

70

*Option:
Fork lenght 2440mm/96" for double pallet
CBD30T/CBD40T Lithium battery 230AH (Charger 24V/100A)
