Electric End Control Pallet Truck CBD25T/CBD30T Suppliers

home / product / Electric Pallet Truck / Electric End Control Pallet Truck
  • Electric End Control Pallet Truck CBD25T/CBD30T
Model

CBD25T/CBD30T

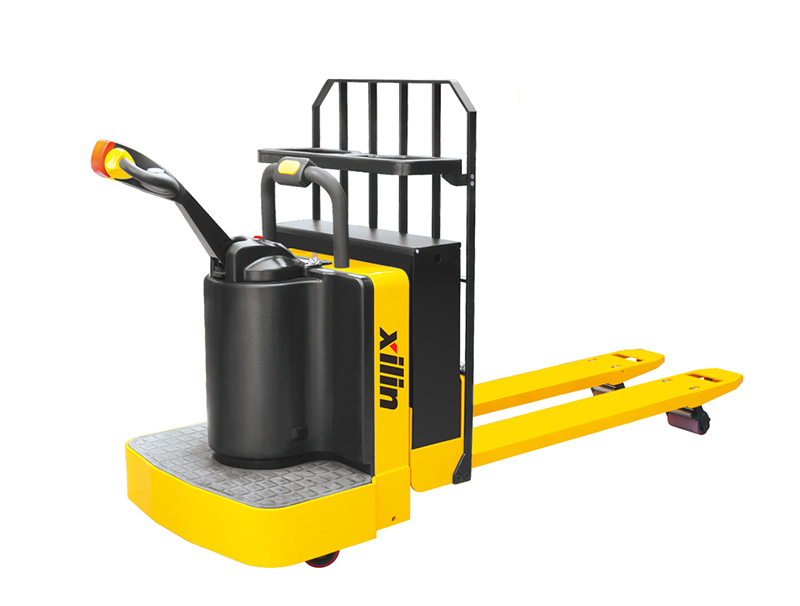

Electric End Control Pallet Truck

● Heavy Duty type CBD-T series Rider Pallet Trucks with capacity (2500-3000KG / 5500-6600LBS), widely used in supermarket & big warehouse.
  • Electric End Control Pallet Truck CBD25T/CBD30T

Advantage:

SAFETY AND EFFICIENCY
● Smooth running, excellent climbing ability, with durable and reliable truck body and wheels.
● Side-standing operation, safety handle bar provides safety operation.
● Electric power steering system(EPS)
● Multi-function display: battery status, hour meter, fault code, slow running state, etc.
● Switch control equipped armrest for lifting/lowering, slow running and the horn functions.
● High-capacity Battery and big power Drive Motor provides strong power and ensures long working time.
● Adjustable-speed AC motor provides long life, free maintenance and excellent performance for the ramp up & down.
● Emergency reverse direction switch equipped handle, provides safer operation.
● Build-in pressure relief valve protects the truck from overloads.
● Emergency power disconnector.
● Turtle speed switch.
STRUCTURAL:
● Vertical drive motor system easy for maintenance.
● Equipped with a load-backrest (different height is available).
● The lifting height reaches 135mm, which provides better passing ability.
● Combined balance wheels increase steadiness, preventing the truck from being rocked from side to side.
● The balance wheel is detachable, it is convenient to maintain.
● The side door of battery is conveniently to be replaced and service.
EASY MAINTENANCE:
● Low battery protection setting prolongs the battery use time.
● CANbus technology reduces wiring complexity, making the line clear, orderly and easy to repair. And also increases the truck's reliability.
● Hall-effect throttle control eliminates wear components and prolongs its use time.
● With reasonable design, the cover is reliable and easy to dismantle, which makes the maintenance of the electrical parts very easy.

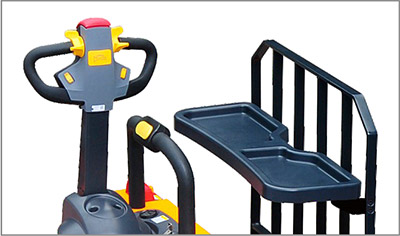

1. Germany Frei handle.
2. High & Low speed switches.
3. Large storage compartment near console to store tools, pencils and paper.

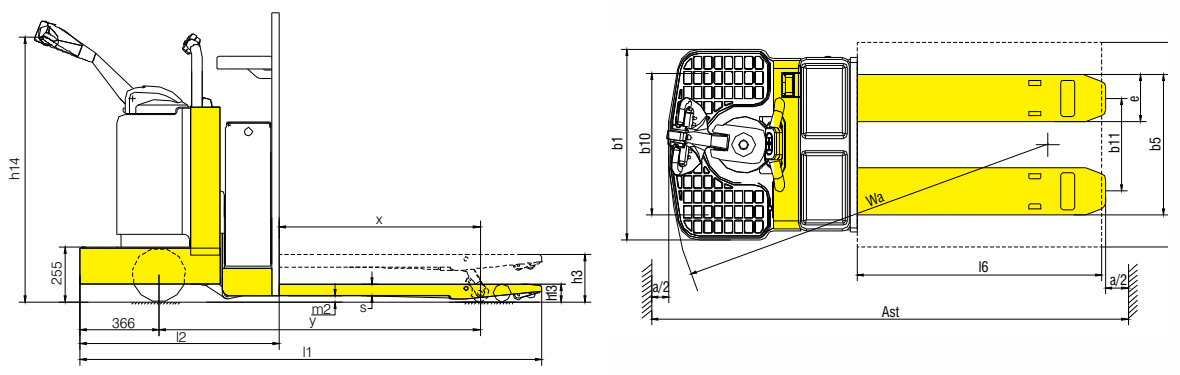

DIMENSION Drawing:

Model



CBD25T

CBD30T

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

2500

3000

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

933

933

Wheelbase

y(mm)

1491

1491

Service weight

kg

860

860

Axle loading, laden front/rear

kg

1240/2120

1360/2500

Axle loading, unladen front/rear

kg

640/220

640/220

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Polyurethane (PU)

Tyre size, front

mm

Φ250x80

Φ250x80

Tyre size, rear

mm

Φ82x173

Φ82x173

Additional wheels (dimensions)

mm

Φ127x57

Φ127x57

Wheels, number front/rear (x = driven wheels)



1X+2/2

1X+2/2

Tread, front

b11(mm)

691

691

Tread, rear

b11(mm)

455

455

Max. lift height

h3(mm)

135

135

Height drawbar in driving position min./max.

h14(mm)

1041/1374

1041/1374

Height lowered

h13(mm)

82

82

Overall length

l1(mm)

2143

2143

Length to face of forts

l2(mm)

923

923

Overall width

b1/b2(mm)

936

936

Fork dimensions DIN ISO 2331

s/e/l(mm)

53/230/1220

53/230/1220

Fork spread

b5(mm)

685

685

Ground clearance, centre of wheelbase

m2(mm)

27

27

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2665

2665

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2540

2540

Turning radius

Wa(mm)

1860

1860

Travel speed, laden/unladen

km/h

6/6.5

6/6.5

Lift speed, laden/unladen

m/s

0.03/0.04

0.03/0.04

Lowering speed, laden/unladen

m/s

0.05/0.045

0.05/0.045

Max. gradeability. laden/unladen

%

8/20

8/20

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

2.2

2.2

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/300

24/300

Battery weight

kg

300

300

Drive control



AC control

AC control

Sound pressure level at the driver's seat

dB(A)

70

70

*Option:
Max capacity up to 4000kg/8800lbs
Max.Fork length: 2440mm/96 inch
Two pallet avaliable
CBD30T Lithium battery 230AH (Charger 24V/100A)
