Electric Walkie Pallet Truck CBD15W/CBD18W CBD20W Suppliers

home / product / Electric Pallet Truck / Electric Walkie Pallet Truck

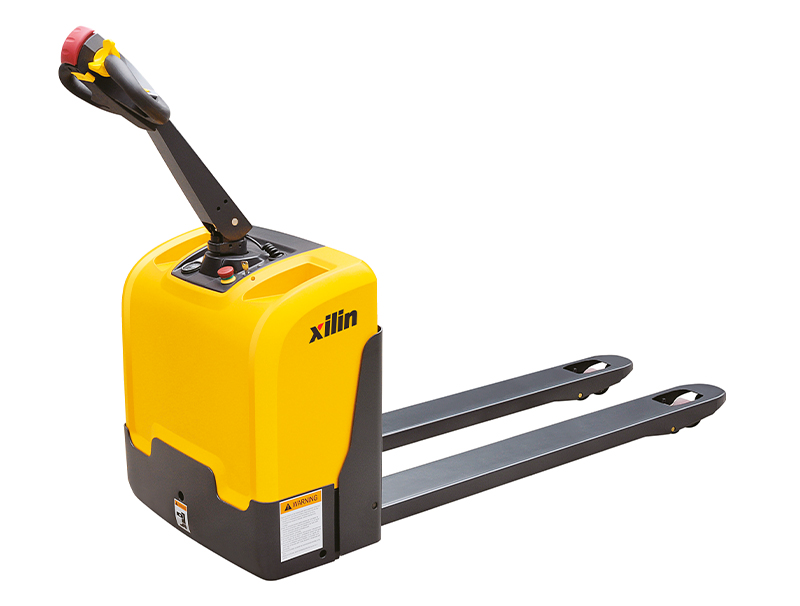

  • Electric Walkie Pallet Truck CBD15W/CBD18W
CBD20W
  • Electric Walkie Pallet Truck CBD15W/CBD18W
CBD20W
Model

CBD15W/CBD18W CBD20W

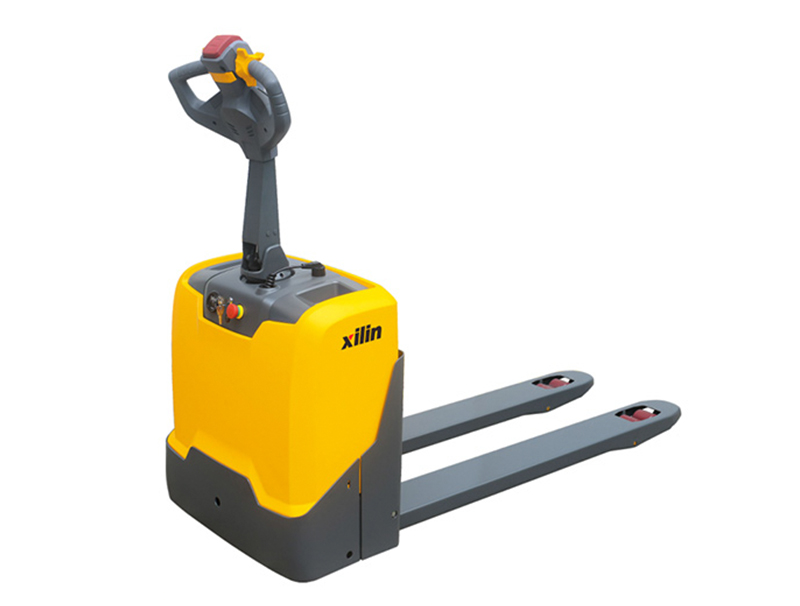

Electric Walkie Pallet Truck

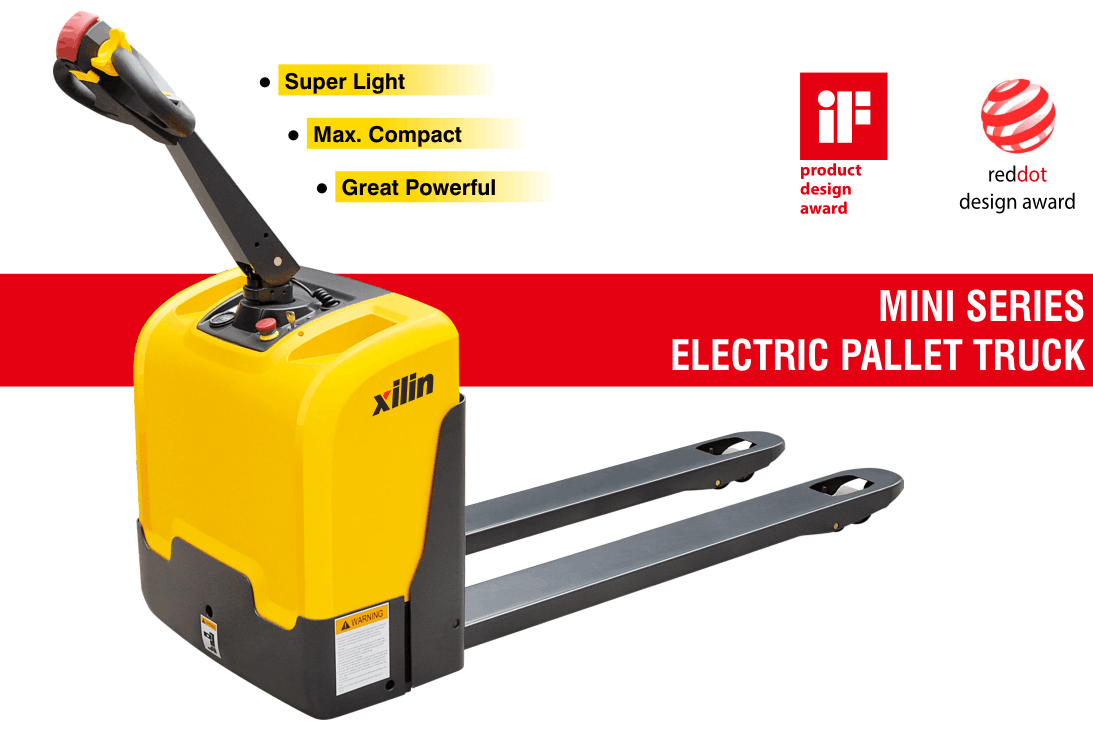

● The Mini type full electric pallet truck is with compact design and powerful motor, with small turning radius offers same outsize as Manual pallet truck, widely used in narrow aisle workshop, supermarket and cargo containers.
  • Electric Walkie Pallet Truck CBD15W/CBD18W
CBD20W
  • Electric Walkie Pallet Truck CBD15W/CBD18W
CBD20W

Advantage:

Advantages: (CBD15W/CBD18W/CBD20W)
● With smallest turning radius 1320mm-1389mm ( width 520/550/685mm).
● DC Brushless motor with high electric efficiency, maintenance free.
● Full sealed battery free to maintain, big capacity high-intensitive use.
● Offers option of low driving speed when handle at upright position, reduce turning space greatly. (option for Germany Frei handle)
● High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
● Floating balance wheel supports automatic height-adjusting.
● Horizontal drive wheel provides convenient replacement.
Standard Features:
● RUYI new type Tiller Head with Max speed limit button.
● Emergency stop & belly button.
● BDI and hour meter.
● Casters to balance stability.
● Sealed battery.
● Brushless Horizontal motor.
● Built-in Charger.
● Exist roller.
Option:
● Germany FREI Tiller Head.
● External charger.
● Fork width and length (size).
● Load backrest.

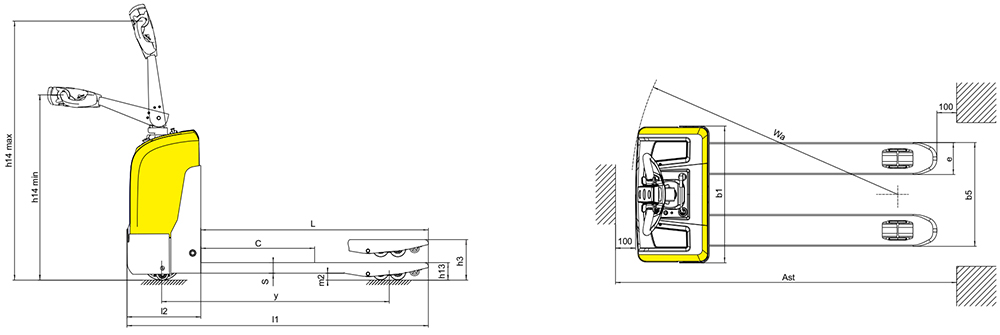

DIMENSION Drawing:

Model



CBD15W

CBD18W

CBD20W

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1800

2000

Load centre distance

c(mm)

600

600

600

Load distance, centre of drive axle to fork

x(mm)

951/1021

951/1021

935/1005

Wheelbase

y(mm)

1152/1222

1152/1222

1130/1200

Service weight

kg

230

250

250

Axle loading, laden front/rear

kg

442/1288

520/1530

580/1670

Axle loading, unladen front/rear

kg

200/30

215/35

215/35

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane (PU)

Polyurethane (PU)

Polyurethane (PU)

Tyre size, front



Ф195x70

Ф195x70

Ф195x70

Tyre size, rear



single Ф80x93/74x93

single Ф80x93/74x93

single Ф80x93/74x93



tandem Ф80x70/74x70

tandem Ф80x70/74x70

tandem Ф80x70/74x70

Additional wheels (dimensions)



60X35

60X35

60X35

Wheels, number front/rear (x = driven wheels)



1X+2/2(4)

1X+2/2(4)

1X+2/2(4)

Tread, front

b10(mm)

500

500

500

Tread, rear

b11(mm)

360/390/525

360/390/525

360/390/525

Max. lift height

h3(mm)

105

105

105

Height drawbar in driving position min./max.

h14(mm)

950/1310

950/1310

950/1310

Height, lowered

h13(mm)

85/75

85/75

85/75

Overall length

l1(mm)

1525/1595

1525/1595

1525/1595

Length to face of forks

l2(mm)

375

375

375

Overall width

b1/b2(mm)

685

685

685

Fork dimensions DIN ISO 2331

s/e/l(mm)

53/160/1150(1220)

53/160/1150(1220)

53/160/1150(1220)

Fork spread

b5(mm)

520/550/685

520/550/685

520/550/685

Ground clearance, centre of wheelbase

m2(mm)

32/22

32/22

32/22

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2102/2184

2102/2184

2133/2200

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2005/2035

2005/2035

2010/2045

Turning radius

Wa(mm)

1347/1415

1347/1415

1330/1400

Travel speed, laden/unladen

km/h

5.3/5.8

5.3/5.8

4.5/5

Lift speed, ladeo/unladen

m/s

0.035/0.045

0.03/0.045

0.03/0.045

Lowering speed, laden/unladen

m/s

0.08/0.037

0.08/0.037

0.08/0.037

Max. gradeability, laden/unladen

%

5/15

5/15

5/15

Service brake



Electromagnetic

Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

0.9

0.9

0.9

Lift motor rating at S3 15%

kW

0.8

0.8

0.8

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/105

24/105

24/105

Battery weight

kg

49

49

49

Sound pressure level at the driver's seat

dB(A)

70

70

70
