Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E Suppliers

home / product / Electric Stacker / Full-electric Stacker / Electric Walkie Stacker
  • Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E
  • Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E
  • Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E
Model

CDD10R-E/CDD12R-E/CDD15R-E

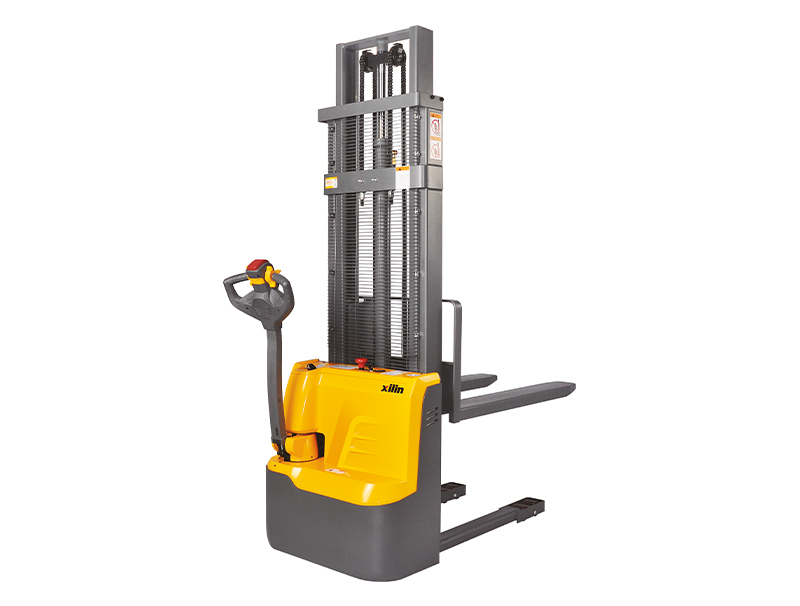

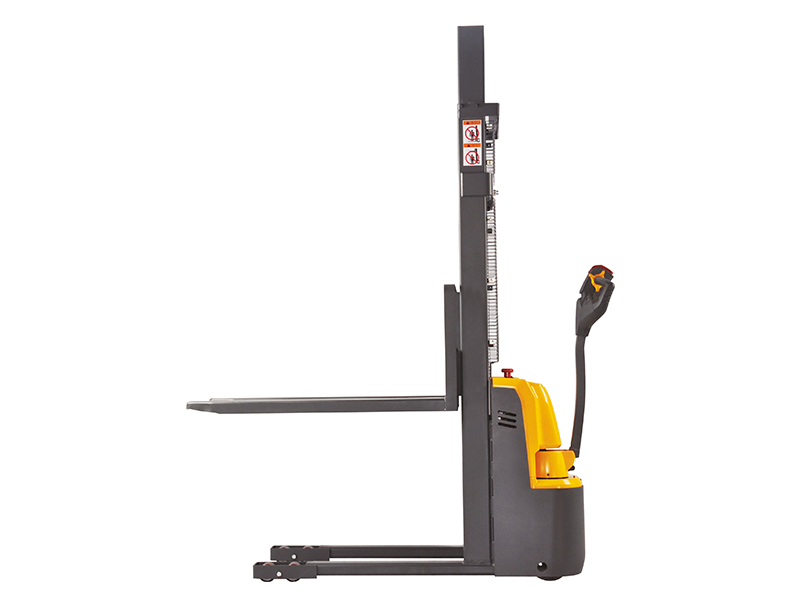

Electric Walkie Stacker

The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation.
  • Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E
  • Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E
  • Electric Walkie Stacker CDD10R-E/CDD12R-E/CDD15R-E

Advantage:

● Back cover is integrated type design , easy to assemble and maintain.
● The drive unit have small turning radius, the motor and brake is very easy to replace.
● Use GEL battery free to maintain.
● Compact design and small dimensions , offer excellent visibility.
● Built in charger easy to access to power supply.
● The turning radius and aisle width is very small and which is similar with manual stacker.
● Low gravity design , 4 point design , improve the trucks stability.

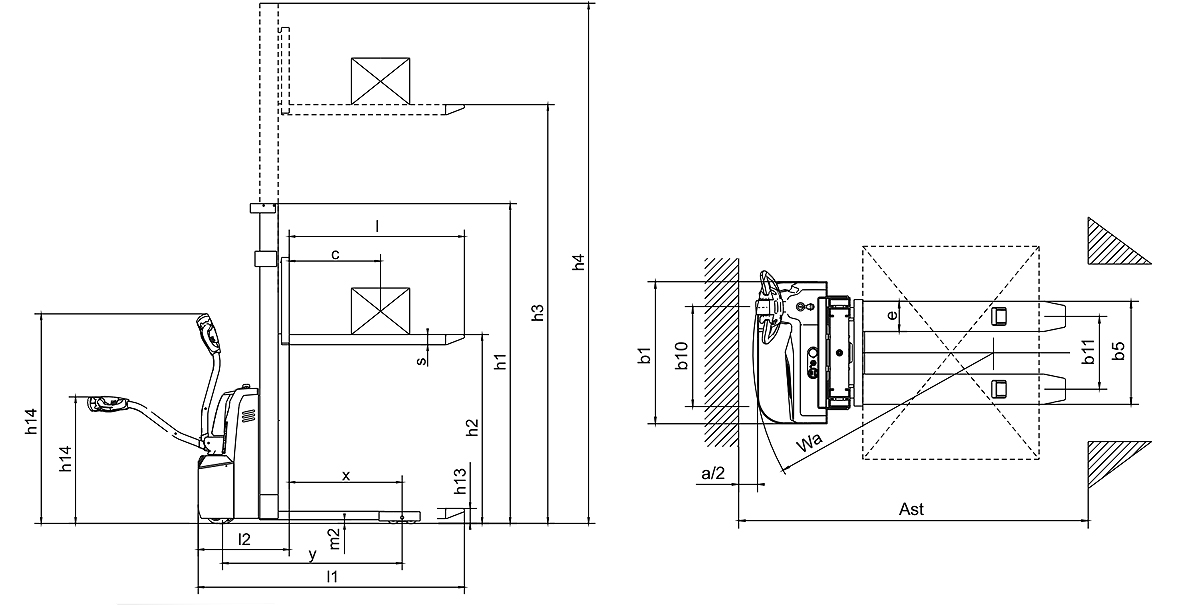

DIMENSION Drawing:

Manufacturer's type designition



CDD10R-E

CDD12R-E

Drive: electric (battery type, mains. ...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1000

1200

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

741

741

Wheelbase

y(mm)

1180

1180

Service weight

kg

460/525/545/560/565

615/640/660/675/680

Axle loading, laden front/rear

kg

515/1063

637/1233

Axle loading, unladen front/rear

kg

405/145

508/162

Tyres: solid rubber, super elastic, pneumatic, polyurethane



PU

Tyre size, front



Φ195x70

Tyre size, rear



Φ80x70

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

Tread, front

b10(mm)

523

Tread, rear

b11(mm)

410/525

Height, mast lowered

h1(mm)

2090/1840/2090/2200/2340

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

Height, mast extended

h4(mm)

2090/3060/3560/3860/4060

Height drawbar in driving position min./max.

h14(mm)

670/1300

Height, lowered

h13(mm)

90

Overall length

l1(mm)

1748(1668)

Length to face of forks

l2(mm)

598

Overall width

b1/b2(mm)

800

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1150(1070)

Fork spread

b5(mm)

570/695

Ground clearance, centre of wheelbase

m2(mm)

26

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2218

2218

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2173

2173

Turning radius

Wa (mm)

1365

1365

Travel speed, laden/unladen

km/h

4.5/5

4.5/5

Lift speed, laden/unladen

m/s

0.11/0.14

0.09/0.14

Lowering speed, laden/unladen

m/s

0.12/0.10

0.12/0.10

Gradeability, laden/unladen

%

6/15

6/15

Max. gradeability. laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

0.65

0.65

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/105(125)

24/105(125)

Battery weight

kg

52(70)

52(70)

Sound pressure level at the driver's seat

dB (A)

70

70



Manufacturer's type designition



CDD15R-E

Drive: electric (battery type, mains. ...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q(kg)

1500

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

741

Wheelbase

y(mm)

1180

Service weight

kg

705/730/750/765/770

Axle loading, laden front/rear

kg

647/1553

Axle loading, unladen front/rear

kg

518/182

Tyres: solid rubber, super elastic, pneumatic, polyurethane



PU

Tyre size, front



Φ195x70

Tyre size, rear



Φ80x70

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

Tread, front

b10(mm)

523

Tread, rear

b11(mm)

410/525

Height, mast lowered

h1(mm)

2090/1840/2090/2200/2340

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

Height, mast extended

h4(mm)

2090/3060/3560/3860/4060

Height drawbar in driving position min./max.

h14(mm)

670/1300

Height, lowered

h13(mm)

90

Overall length

l1(mm)

1748(1668)

Length to face of forks

l2(mm)

598

Overall width

b1/b2(mm)

800

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1150(1070)

Fork spread

b5(mm)

570/695

Ground clearance, centre of wheelbase

m2(mm)

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2218

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2173

Turning radius

Wa (mm)

1365

Travel speed, laden/unladen

km/h

4.5/5

Lift speed, laden/unladen

m/s

0.08/0.14

Lowering speed, laden/unladen

m/s

0.12/0.10

Gradeability, laden/unladen

%

6/15

Max. gradeability. laden/unladen

%

6/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

0.65

Lift motor rating at S3 15%

kW

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/125

Battery weight

kg

70

Sound pressure level at the driver's seat

dB (A)

70
