Model

CTD10R-E/CTD12R-E/CTD15R-E

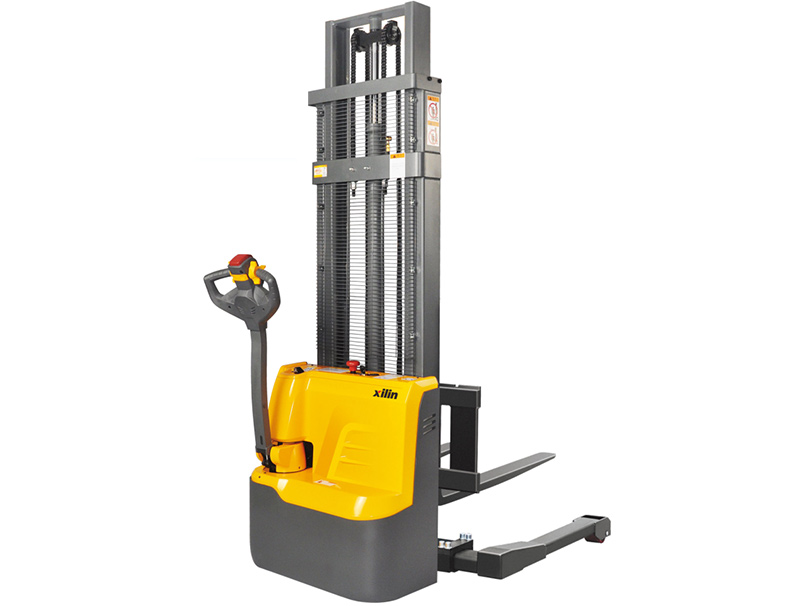

Electric Walkie Straddle Stacker

The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation.

Advantage:

● Back cover is integrated type design , easy to assemble and maintain.	● The drive unit have small turning radius, the motor and brake is very easy to replace.
● Use GEL battery free to maintain.	● Compact design and small dimensions , offer excellent visibility.
● Built in charger easy to access to power supply.	● The turning radius and aisle width is very small and which is similar with manual stacker.
● Low gravity design , 4 point design , improve the trucks stability.

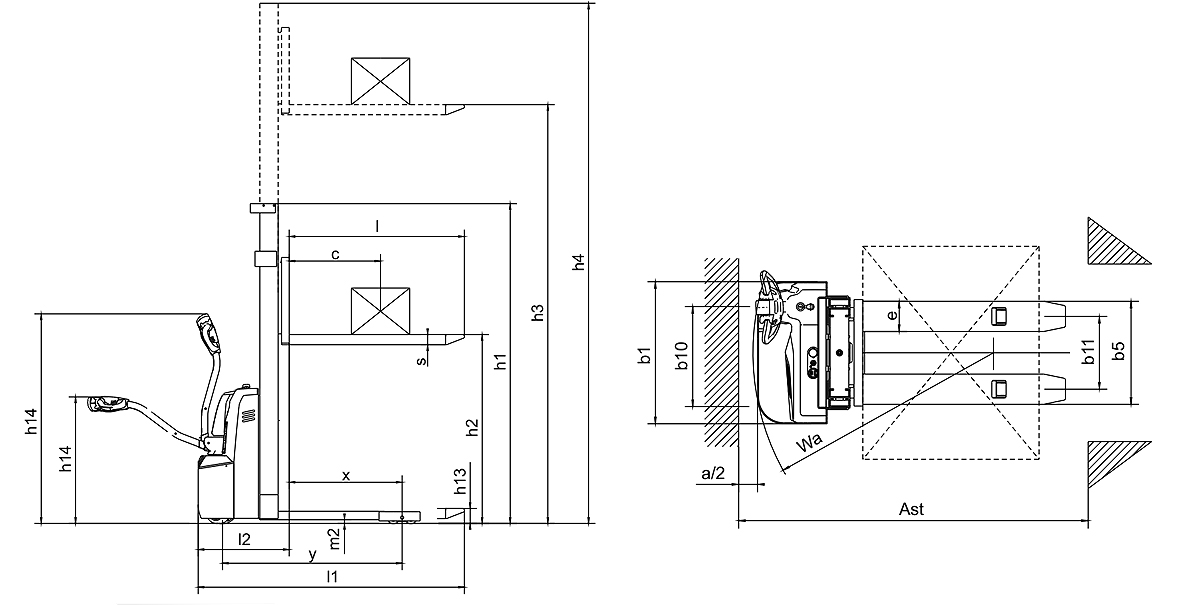

DIMENSION Drawing:

Manufacturer's type designition		CTD10R-E	CTD12R-E	CTD15R-E
Drive: electric (battery type, mains. ...)• diesel, petrol, fuel gas		Electric	Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Pedestrian	Pedestrian	Pedestrian
Rated capacity/rated load	Q_	1000	1200	1500
Load centre distance	c(mm)	600	600	600
Load distance, centre of drive axle to fork	x(mm)	800	800	800
Wheelbase	y(mm)	1350	1350	1350
Service weight	kg	490/555/575	490/555/575	580/645/665
Axle loading, laden front/rear	kg	530/1140	550/1350	600/1715
Axle loading, unladen front/rear	kg	485/185	500/200	560/225
Tyres: solid rubber, super elastic, pneumatic, polyurethane		PU
Tyre size, front		Φ195x70
Tyre size, rear		Φ98x82
Additional wheels (dimensions)		Φ150x60
Wheels, number front/rear (x = driven wheels)		1x+1/2
Tread, front	b10(mm)	523
Tread, rear	b11(mm)	1066-1466
Height, mast lowered	h1(mm)	2145/1895/2145/2295/2395
Max. lift height	h3(mm)	1600/2500/3000/3300/3500
Height, mast extended	h4(mm)	2145/3145/3645/3995/4145
Height drawbar in driving position min./max.	h14(mm)	670/1300
Height, lowered	h13(mm)	70
Overall length	l1(mm)	1786/1866
Length to face of forks	l2(mm)	717
Overall width	b1/b2(mm)	1182-1582
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/1070(1150)
Fork spread	b5(mm)	200-800
Ground clearance, centre of wheelbase	m2(mm)	65
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2366
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2300
Turning radius	Wa (mm)	1530
Travel speed, laden/unladen	km/h	4.5/5
Lift speed, laden/unladen	m/s	0.11/0.14	0.09/0.14	0.08/0.14
Lowering speed, laden/unladen	m/s	0.12/0.10	0.12/0.10	0.12/0.10
Gradeability, laden/unladen	%	6/15	6/15	6/15
Max. gradeability. laden/unladen	%	6/15	6/15	6/15
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	0.65	0.65	0.65
Lift motor rating at S3 15%	kW	2.2	2.2	2.2
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/105(125)	24/105(125)	24/125
Battery weight	kg	52(70)	52(70)	70
Sound pressure level at the driver's seat	dB (A)	70	70	70
